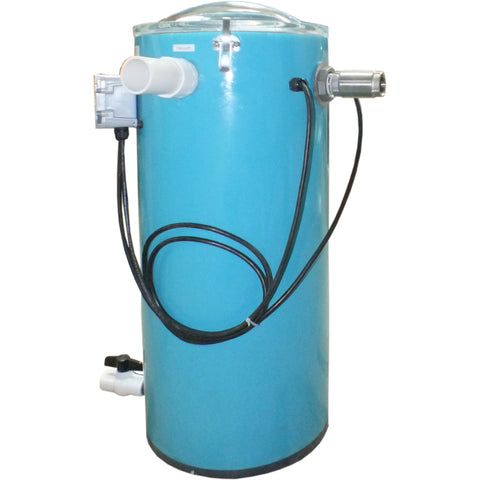

Vertical releaser with pump in thermoplastic 14"

$2,499⁰⁰
Save $0⁰⁰

Electric releaser with submersible pump allows to operate at high vacuum

All components are heavy duty to operate at high vacuum
Stainless steel pitless for quick cleaning of the pump
Stainless steel check valve
Manual-off-automatic switch
Float level control
Standard height of the master lines at 28 "
No air intake in your network
Increases the number of CFM during operation

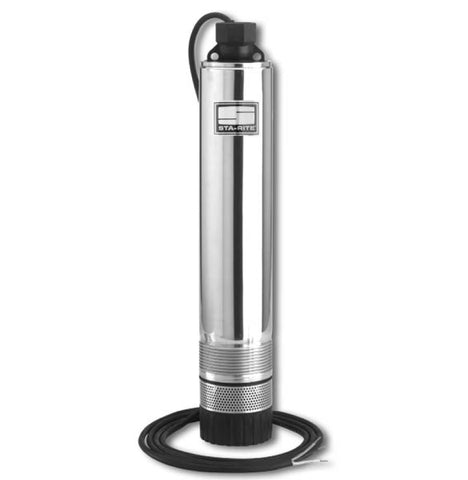

Thermoplastic bottom suction pump

Specification if 1x 1/2hp # 01250411 (115 volt) or # 01250418 (230 volt)

14 "diameter tank Maximum pressure: 75psi
Flow rate at 25 hg 0psi: 10gpm (Max 3000 taps)
Flow rate at 25 hg 25psi: 6gpm (Max 1800 taps)

Flow rate at 28.5 hg 0psi: 6gpm (Max 1800 taps)
Flow rate at 28.5 hg 25psi: 4gpm (Max 1200 taps)

Specification if 1x 1hp 20gpm # 01250573 (230 volt)

14 "diameter tank Maximum pressure: 90psi
Flow rate at 25 hg 0psi: 20gpm (Max 6000 taps)
Flow rate at 25 hg 25psi: 19gpm (Max 5700 taps)

Flow rate at 25 hg 50psi: 18gpm (Max 5400 taps)
Flow rate at 25 hg 75psi: 12gpm (Max 3600 taps)

Flow rate at 28.5 hg 0psi: 9gpm (Max 2700 taps)
Flow rate at 28.5 hg 25psi: 9gpm (Max 2700 taps)

Flow rate at 28.5 hg 0psi: 9gpm (Max 2700 taps)
Flow rate at 28.5 hg 25psi: 4gpm (Max 2100 taps)

Specification if 1x 1hp 30gpm # 01250575 (230 volt)

14 "diameter tank Maximum pressure: 50psi

Flow rate at 25 hg 0psi: 30gpm (Max 9000 taps)
Flow rate at 25 hg 20psi: 30gpm (Max 9000 taps)

Flow rate at 28.5 hg 0psi: 13gpm (Max 4000 taps)
Flow rate at 28.5 hg 20psi: 13gpm (Max 4000 taps)

Drawing to place size hole, pump, drain on your releaser (PDF)

Model and voltage to specify

1/2hp 115 volt Vertical without manifold # 01250411
1/2hp 230 volt Vertical without manifold # 01250418
1hp 230 volt 20gpm Vertical without manifold # 01250573
1hp 230 volt 30gpm Vertical without manifold # 01250575
